specifications

  • Whole Size:

    Closed:6300(L)×2300(W)×2500(H)mm Opened:7200(L)×4800(W)×2800(H)mm

  • Tare Weight:

    2270KG

  • Max Load Capacity:

    730KG

  • GVW:

    3000KG

  • Towball Weight:

    200KG

  • Drawbar:

    HDG 150×50×4mm

  • Suspention:

    Independent trailing arm with dual shock absorbers

  • Brake:

    12" electric brake+Break-Away System

  • Tire:

    LT265/75R16

  • Wheel:

    16" steel rim

  • Body Construction:

  • Body Construction:

    Composite Panel

  • Body Frame:

    Metal Tube Frame Fully Welded

  • Wall Insulation:

    30mm extruded polystyrene board(XPS) foam

  • Ceiling:

    Fibreglass

  • Floor:

    Composite Floor Board & PVC

  • Body Protection:

    aluminum checker plate & Steel Rock Sliders

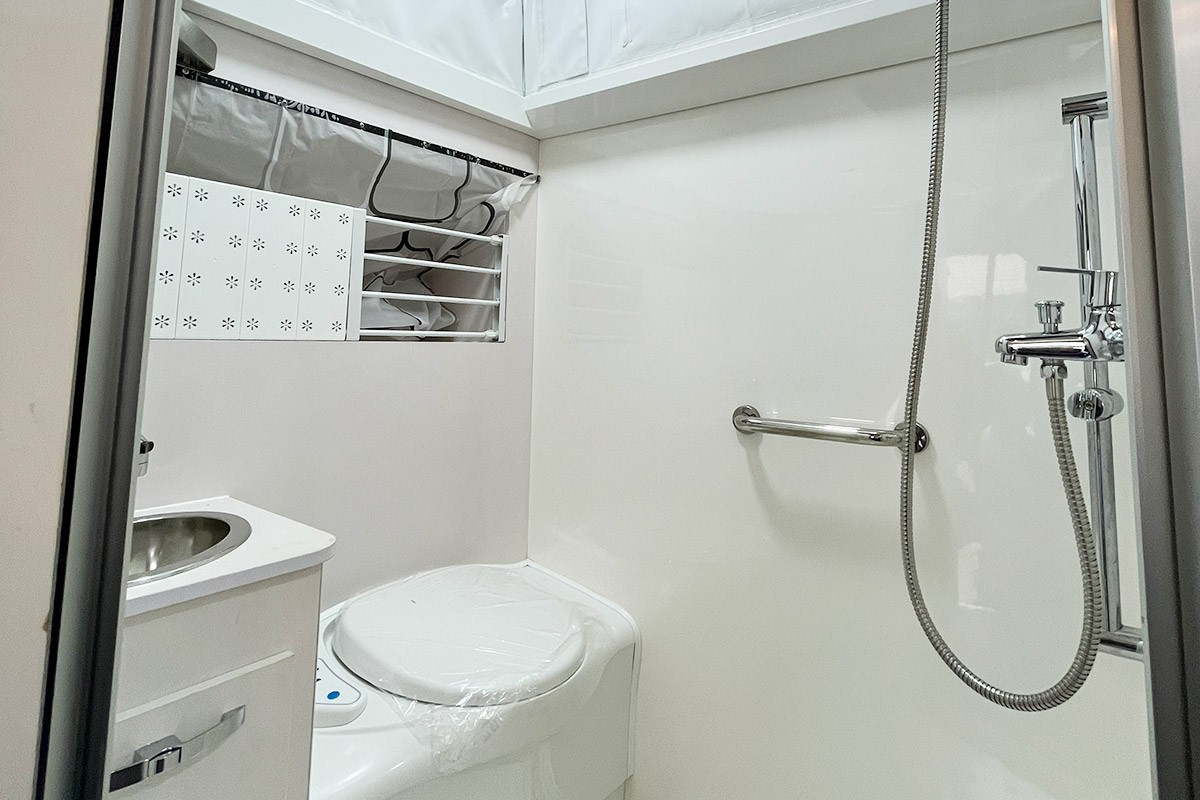

  • Bathroom:

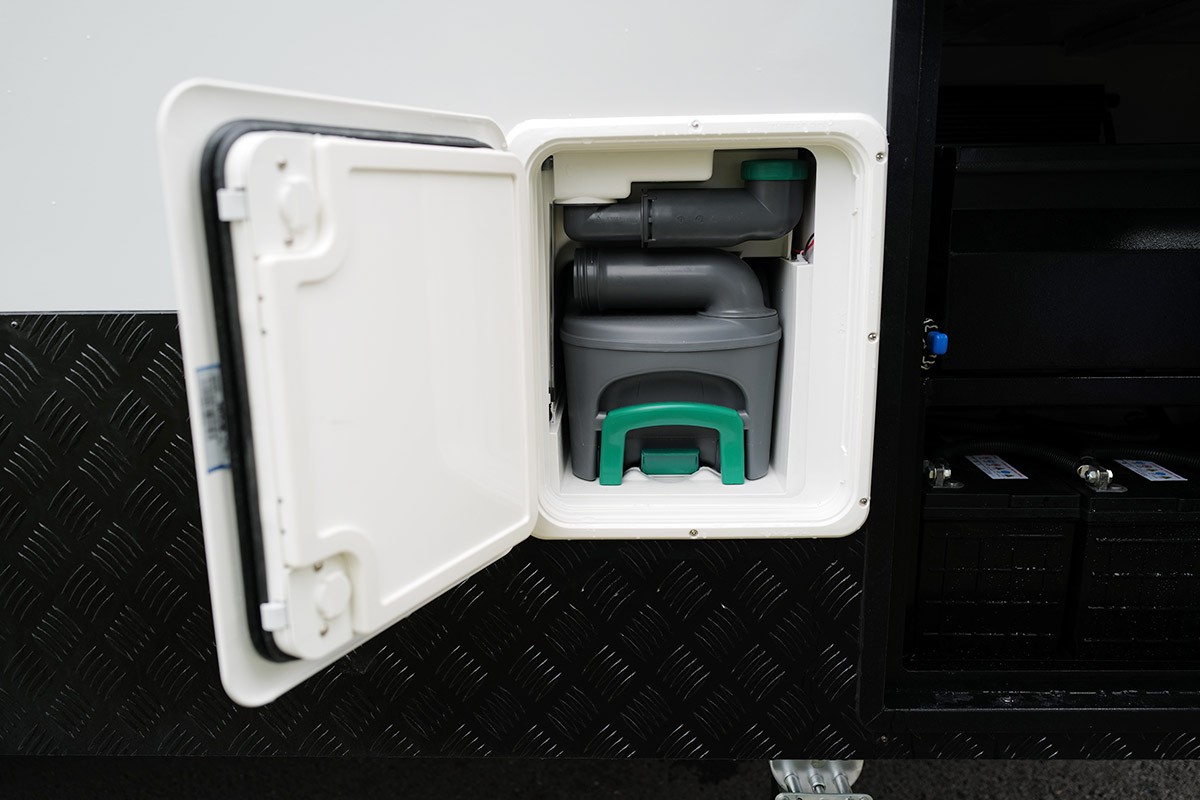

  • Toilet:

    Thetford 400Series

  • Ventilation:

    Two-way Fan Assisted Active Vent

  • Lighting:

    12V Waterproof LED Light

  • External Shower:

    Hot & Cold Water

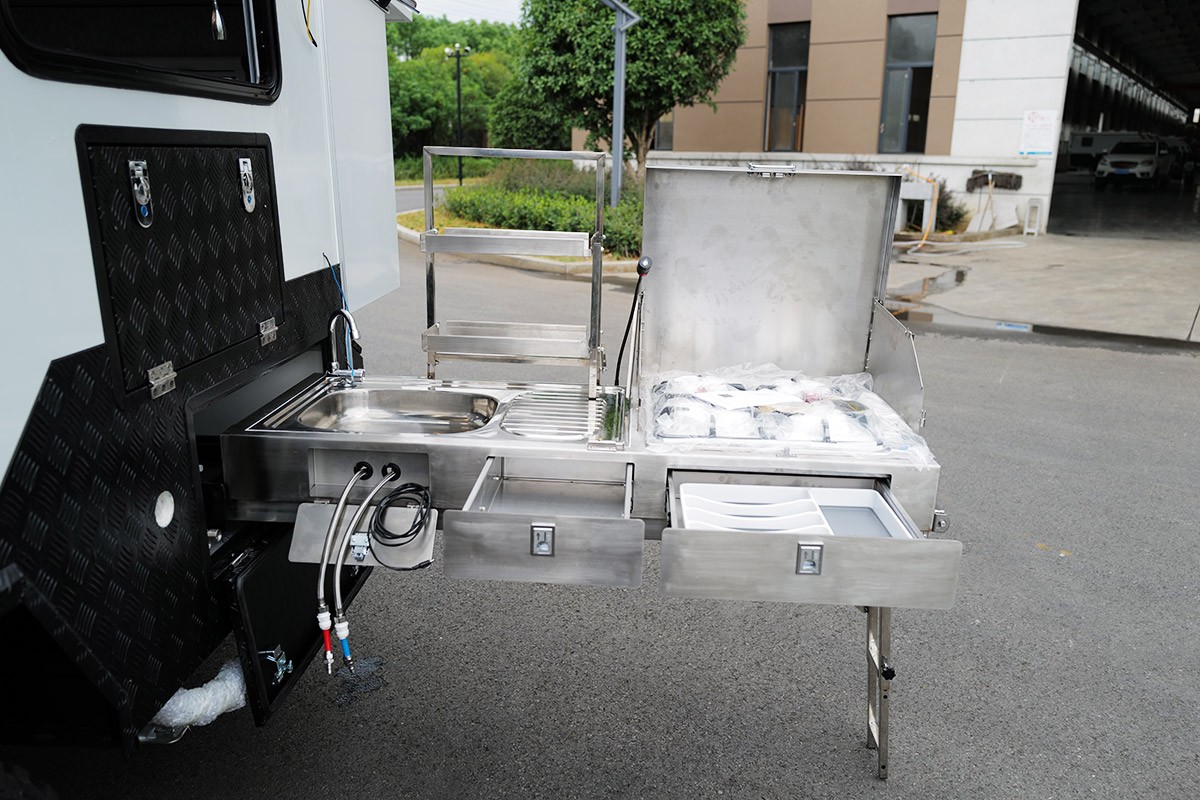

  • Kitchen:

  • Cooktop:

    Stainless Steel 4 Burner Stove

  • Sink:

    Stainless Steel Bowl+folding tap

  • Storage:

    Pantry with Cutlery Tray

  • Light:

    LED Fixed Light & Flexible Light

  • Power System:

  • Battery:

    3x 100Ah

  • CIG & USB:

    8x Sockets & 6x USB

  • Inverter:

    2KW Inverter

  • Charger:

    30A Charger

  • Vehicle Connect:

    Fused 50A Anderson Plug 50A

  • 240V System:

    9xDouble Pole 10A Sockets,15A Inlet,1x10A Waterproof Socket

  • Air Conditioner:

    air conditioner at bottom

  • Awning:

    Electric Awning, 12V, size: 3m×2.5m

  • Safety Protection:

    RCD & Resettable Fuses

  • Storage:

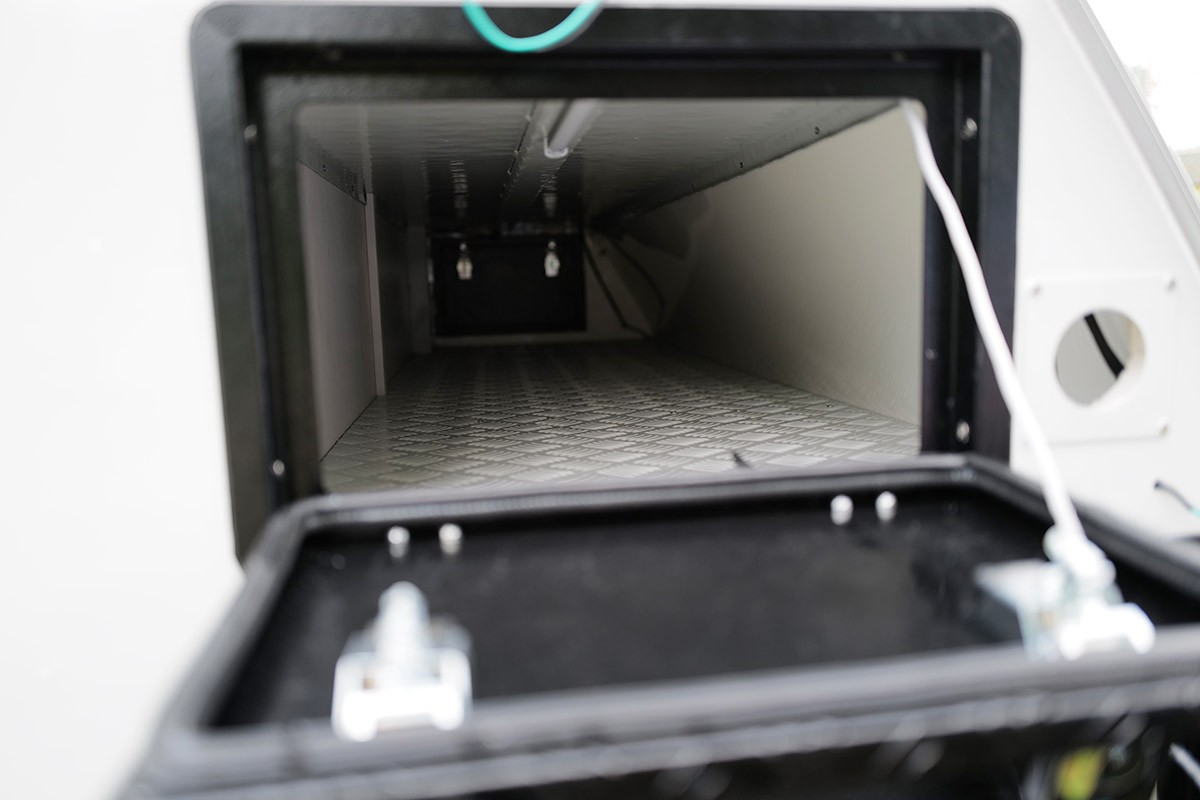

  • Fridge Slide:

    960(L)×570(W)×560(H)mm

  • Toolbox:

    2x600(L)×310(W)×400(H)mm

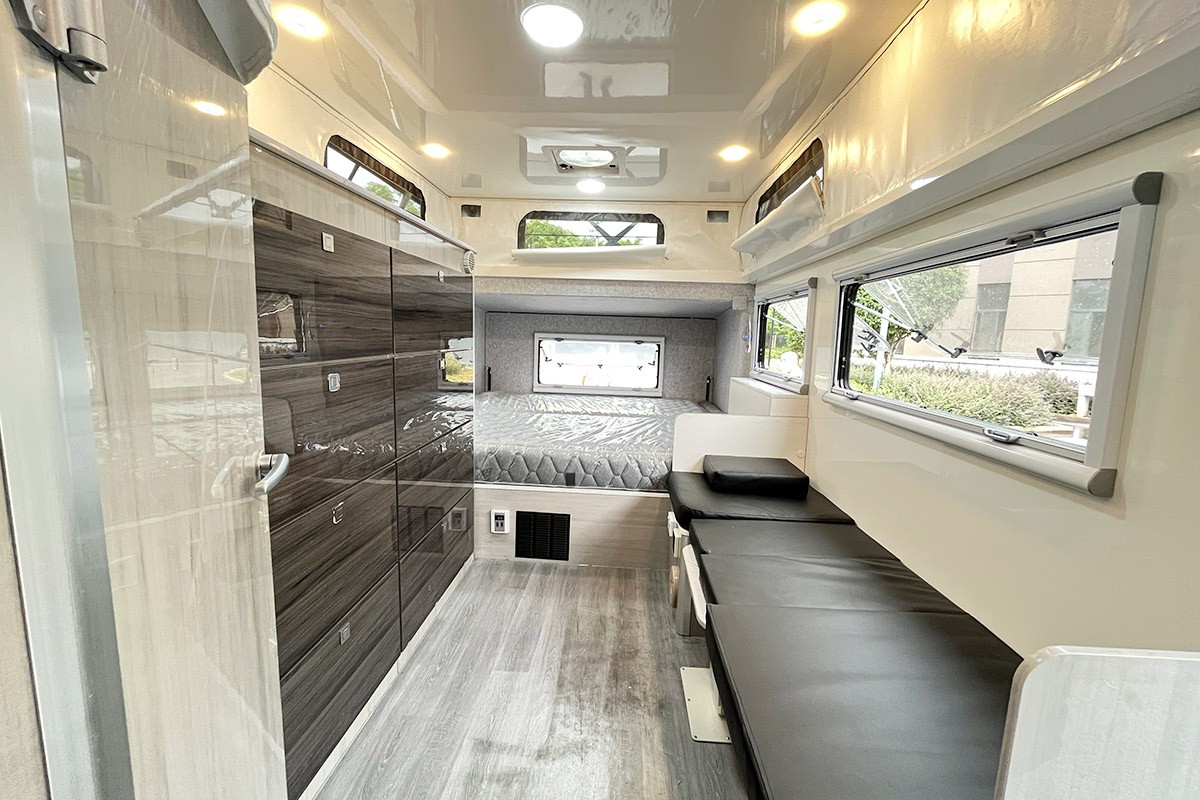

  • Internal :

    2-7 x Cabinets

  • Entertainment:

  • Stereo System:

    CD, Radio, Bluetooth

  • Speaker:

    2x Internal; 2x Outdoor Marine Speakers

Parameter details

This series of trailers are suitable for material handling. They make full use of their transport functions on vast land, and greatly improve work efficiency. The trailer has a solid structure, beautiful appearance, safe use,and heavy load-bearing capacity. It is a good tool for outdoor transportation.
