The trailer has a heavy load and is suitable for
pulling ATV cargo from abroad
Trailer Size:
8’ x 5’
Drawbar:
100x50x5mm
Internal Size:
2420mm x 1520mm
Surface Finish:
Hot Dipped Galvanised
Colour:
Silver
Lights:
LED ADR Light
Axle:
55mm Solid axle with 2T dexter bearings
ATM:
3500kg
Jockey Wheel:
10” Swivel
Fully Weld:
Yes
Checker Plate:
Full 2.5mm

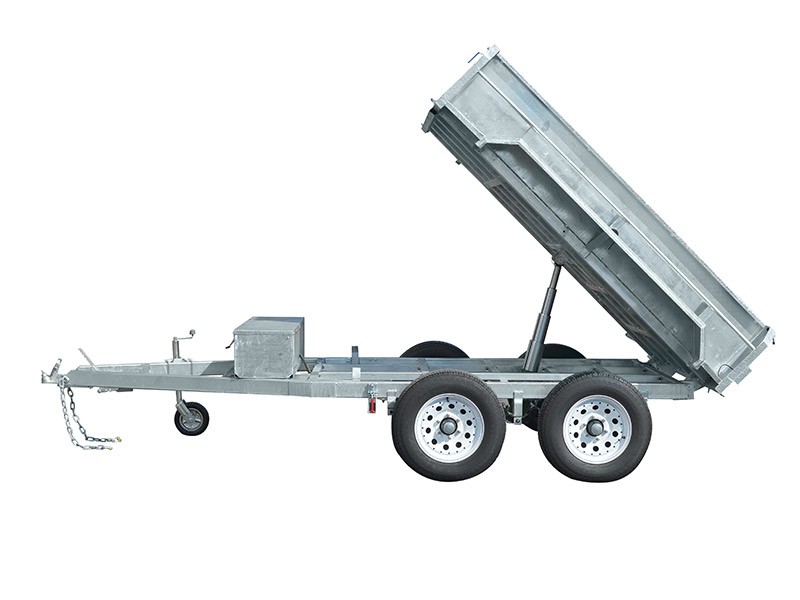

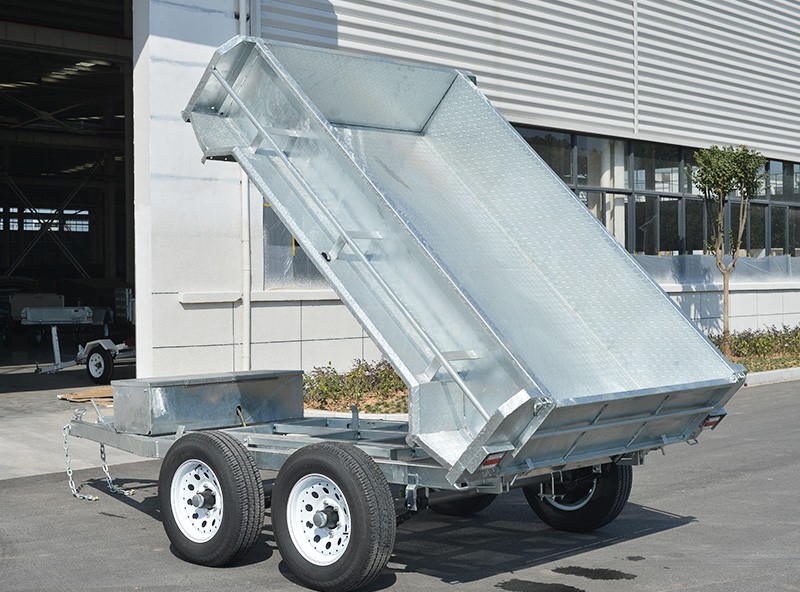

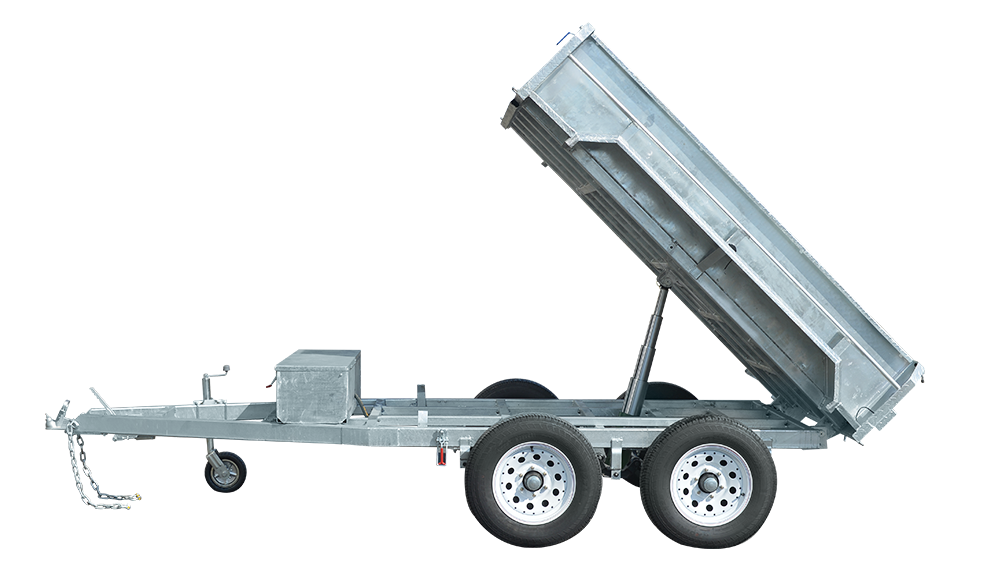

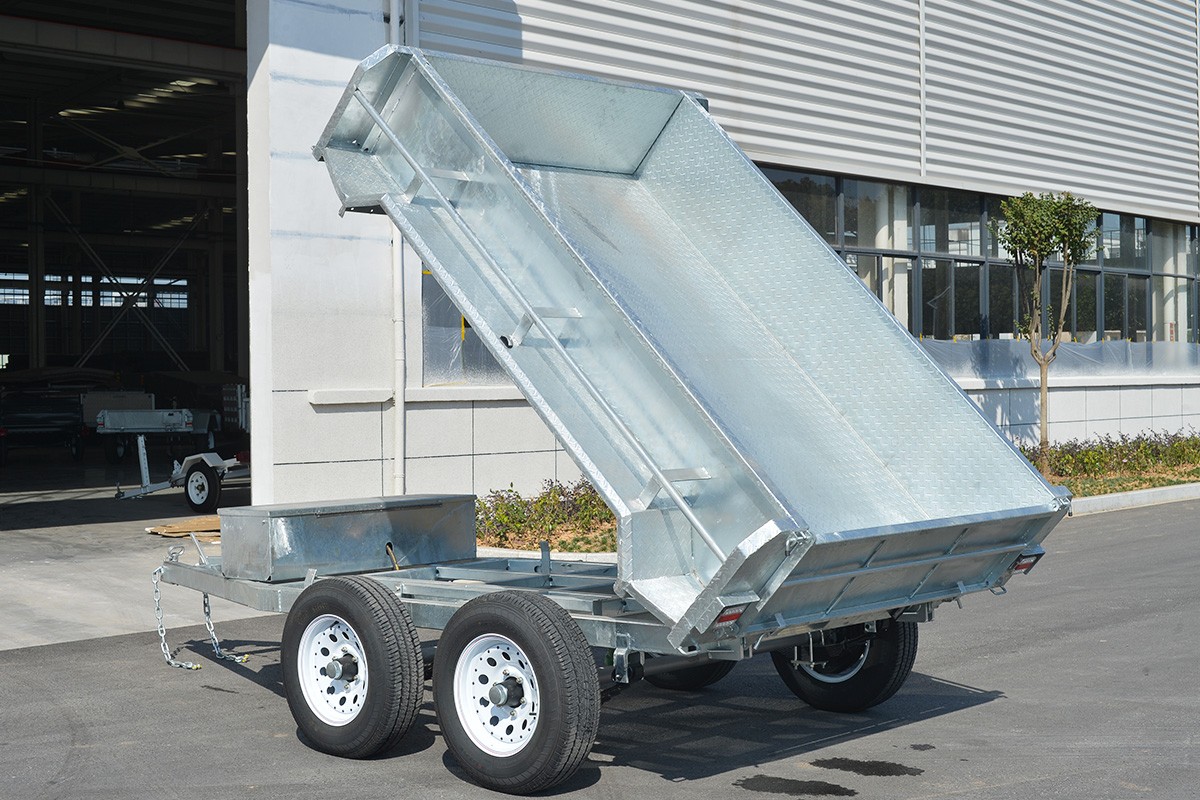

Tilt body:
4 stage ram with 4000KG lifting capacity
Side:
300mm 2.5mm Fold Up
Cage:
600mm 30x30mm
Suspension:
7 leaf rocker roller
Cross Beam:
70x50x3mm
Wheel & Tyre:
195R15C Light Truck
Brake:
12 inch electric drum brakes
custom made:
Size can be customized according to requirements

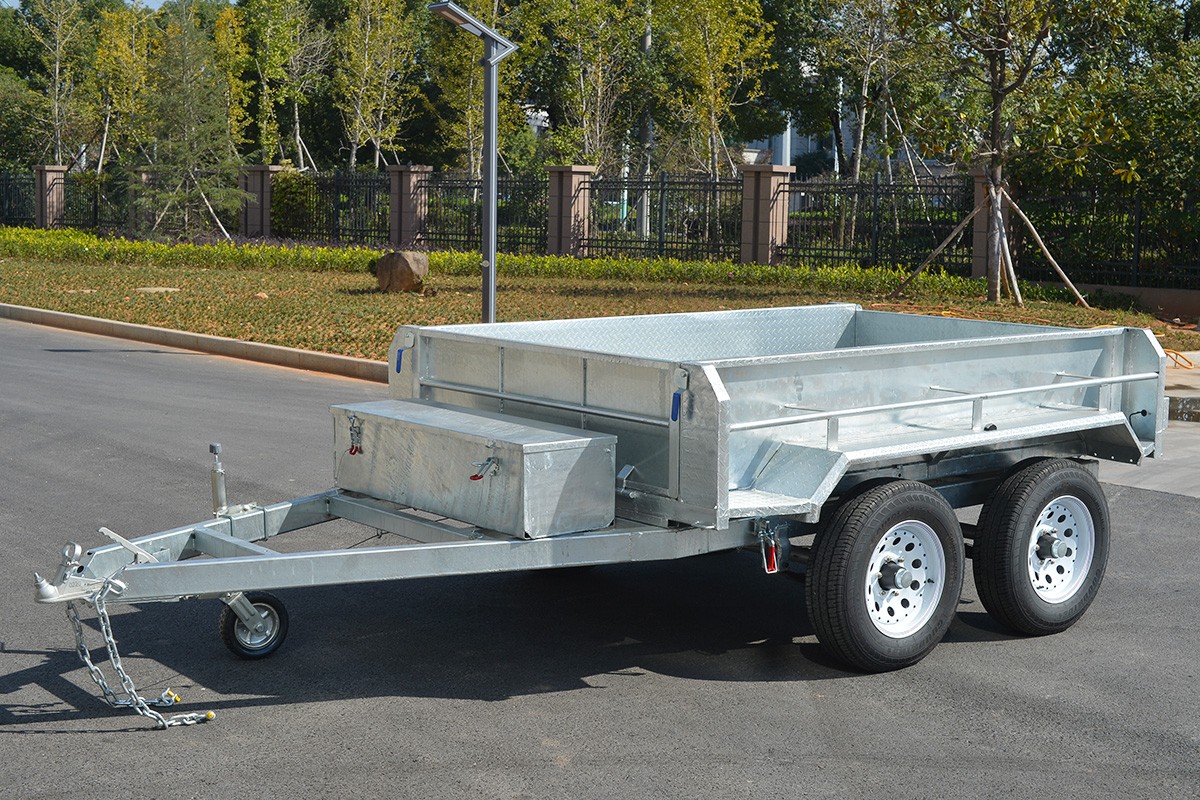

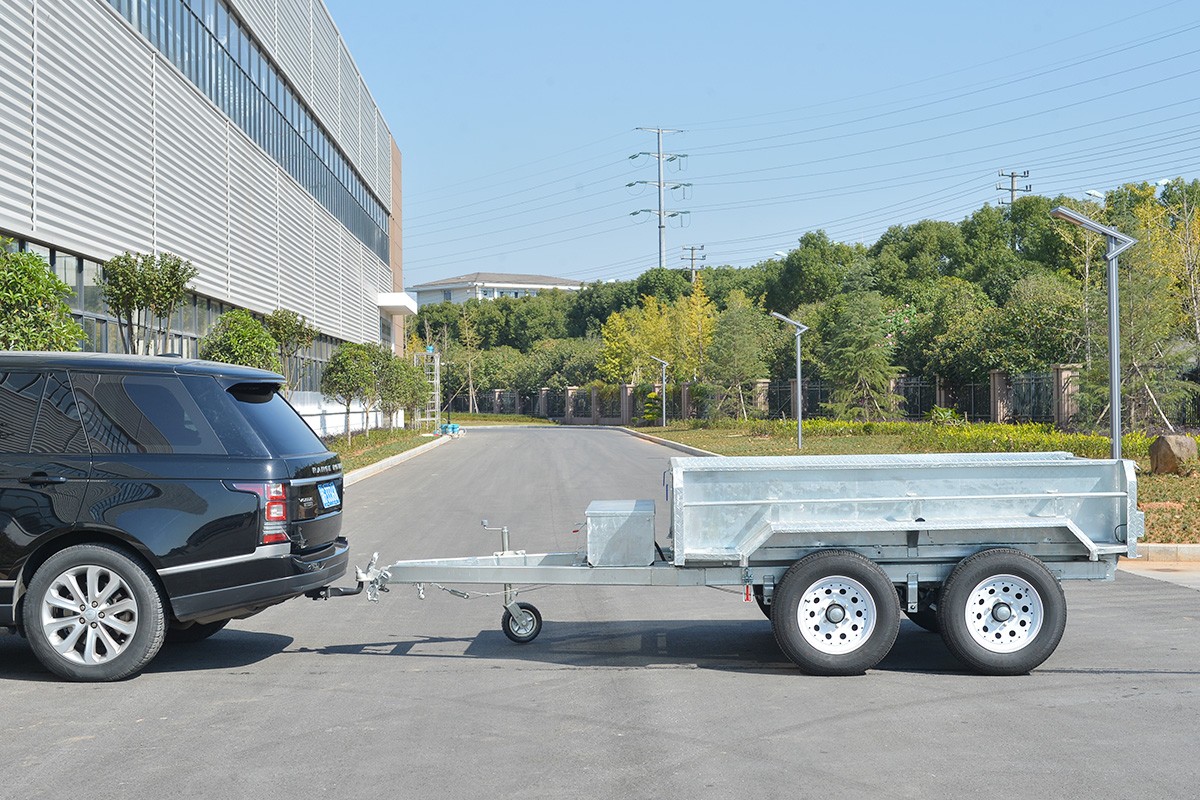

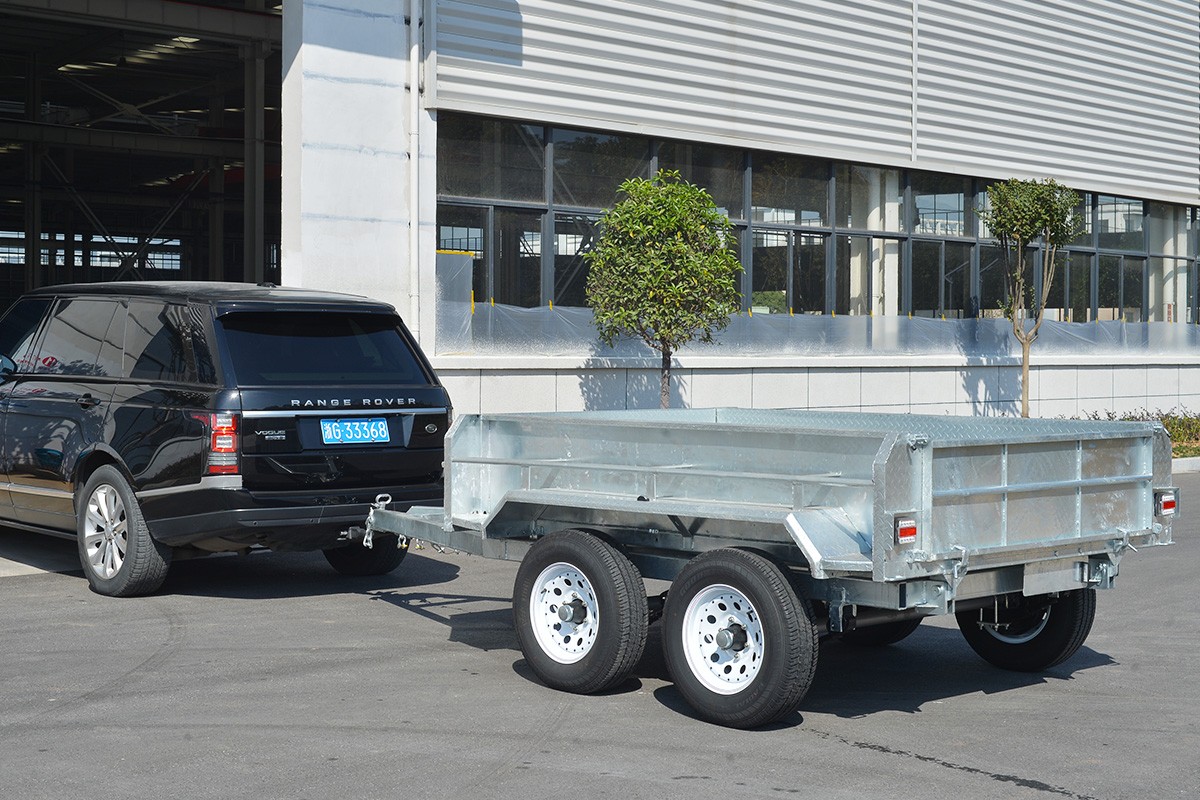

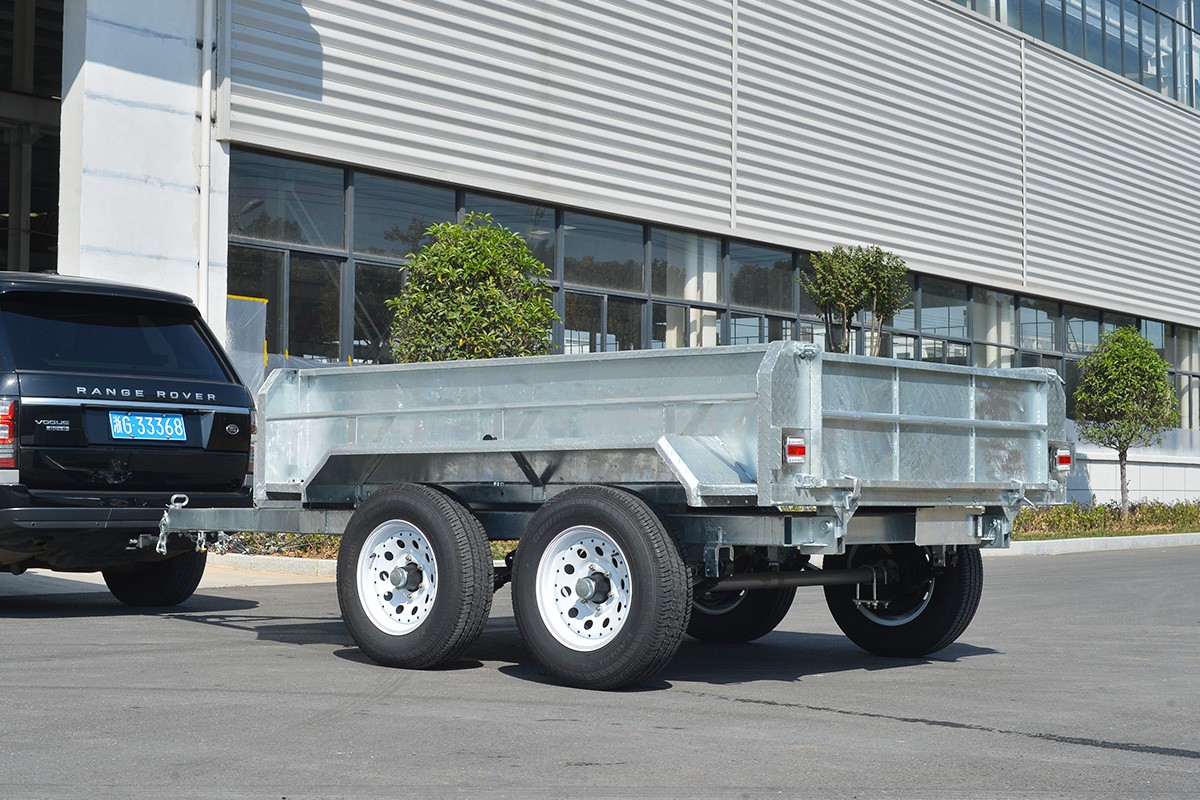

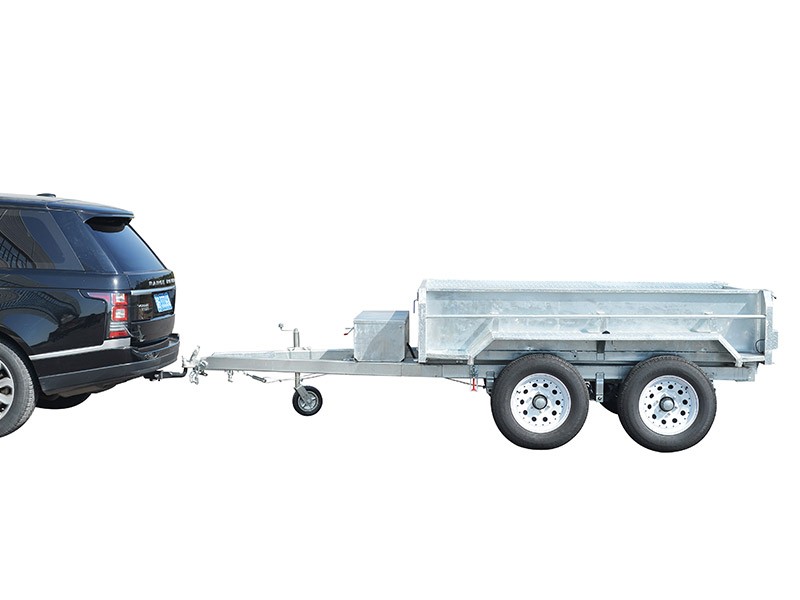

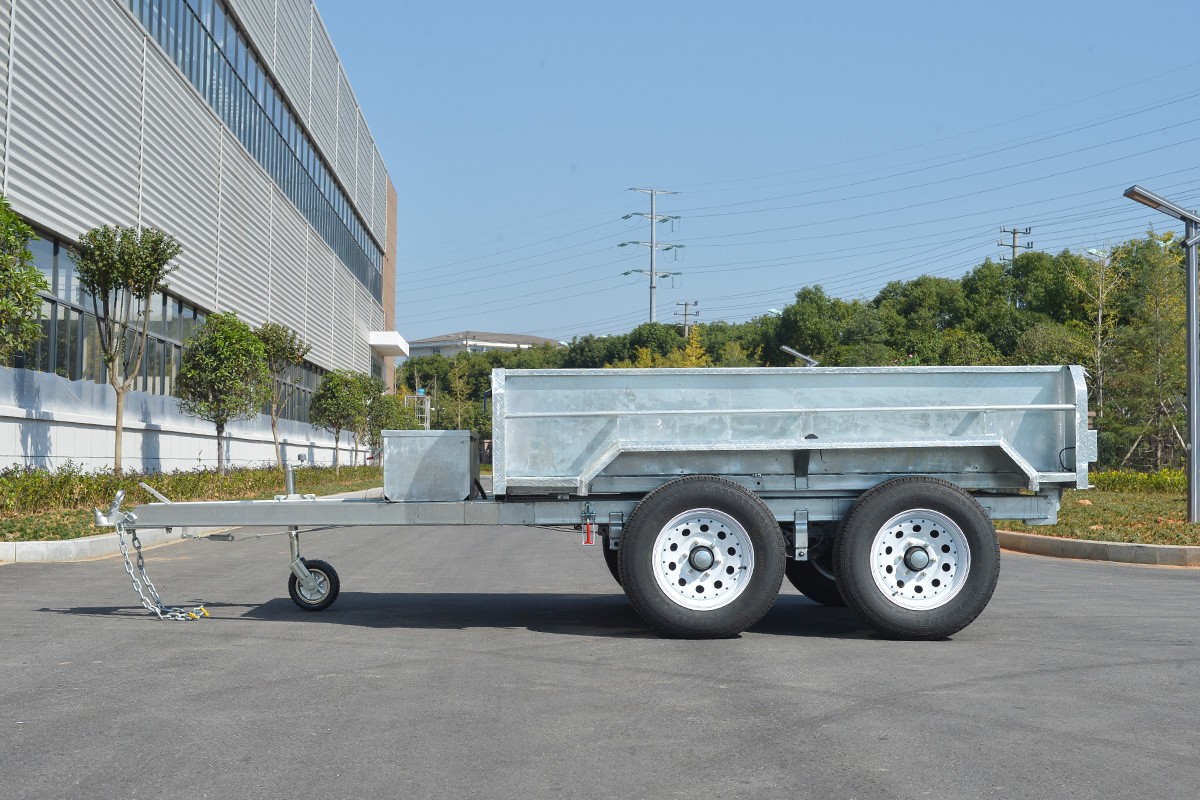

8×5 Galvanised Cage Mesh Hydraulic Tipper Trailer | 3.5T ATM
10 inch heavy duty jockey wheel，Brand new 15” sunraysia rim and 195 light truck tyre，Removable 600mm Cage，Fully weld body，450mm deep side wall，One-piece fully welded heavy duty chassis，3500kg ATM，Hydraulic system and battery pack complete，Checker plate floor，Breakaway unit fitted，7 pin flat plug，1800mm drawbar
